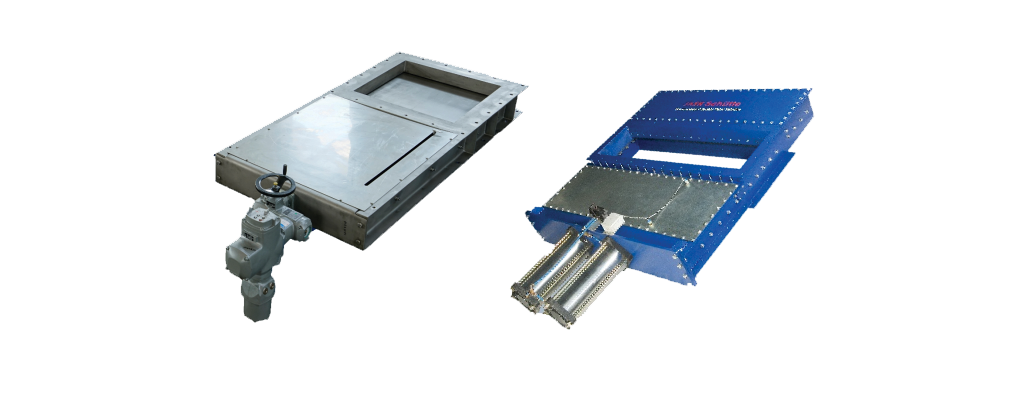

FABRICATED SLIDE VALVE: UNIDIRECTIONAL, METAL SEATED, MODEL: VEG, SERIES C541/531
SERIES: C-541, VEG – Integral metal seated valve – Mild Steel construction
SERIES: C-531, VEG – Integral metal seated valve – Stainless Steel construction
Application The VEG series valves are custom-built fabricated valves, built to suit the size and application requirement of the customer.
Size Range From Sq. 100 (4”) – Sq. 4000 (160”) or as required by the customer.
Pressure Rating PN3 (45 PSI)
Temperature Range -20°C to 950°C
Flange drilling As per Jash Schutte standard / Custom
Optional seating Resilient seat up to 250°C, Inflatable seat
Optional features Abrasion-resistant coating, Stem Cover, Extended stem, Dust cover
Mode of operations Manual, chain wheel, pneumatic, electric actuator and Hydraulic
