MULTI RAKE SCREENS
JASH MULTIRAKE BAR SCREEN
B211-JMR-MULTIRAKE-BARJMR is a medium duty Multi-rake screen provided with inclined bars spaced apart to prevent medium and large floating wastes from travelling further to the pumps located in the pumping station. The inclined bar screen is stationery and is cleaned by a mechanized rake which rakes the screen upwards to deposit the raked waste to a waste discharge bin / conveyor. Multiple number of rakes are provided to clean the waste depositing on bars continuously at a pre-decided time interval. This medium duty screen is provided with flat bars, chain link of 4 inch size having 63 / 90 kN breaking load and stainless steel rollers.
Bar Spacing10 mm and above
Channel Width700 mm to 2,000 mm
Channel DepthMaximum up to 12,000 mm
Mode of OperationMotorized
Material of ConstructionStainless Steel 304, 316 / Duplex / Super Duplex.  Other grades of stainless steel on request.
Technical FeaturesClick to open

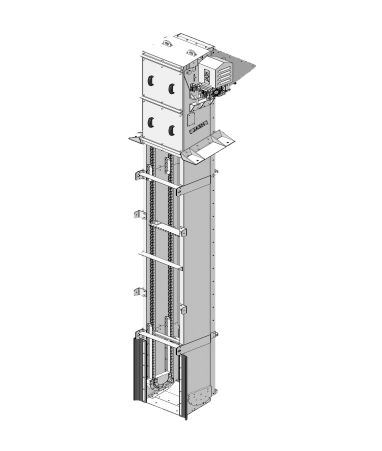

JASH MAHR MASCHINENBAU “MM2MM”® MULTIRAKE BAR SCREEN
MM2MM® is a heavy duty and sturdy Multi-rake screen provided with inclined bars spaced apart to prevent fine, medium and large floating wastes from travelling further to the pumps located in the pumping station. The inclined bar screen is stationery and is cleaned by a mechanized rake which rakes the screen upwards to deposit the raked waste to a waste discharge bin / conveyor. Multiple number of rakes are provided to clean the waste depositing on bars continuously at a pre-decided time interval of minimum 10 seconds. This heavy duty screen has an option of flat / tapered bars, chain link of 4 / 5 / 6 / 8 inch size having 63/90/112/140 kN breaking load and stainless steel rollers. Each bar is individually replaceable and the screen is given with a jam removal function as well as dual speed to enable faster operation during flooding.
Bar Spacing06 mm and above. (02 mm spacing can also be provided for small sizes)
Channel Width600 mm to 4000 mm.
Channel DepthUp to 60,000 mm. Higher depth on request.
Mode of OperationMotorized.
Material of ConstructionStainless Steel 304, 316 / Duplex / Super Duplex. Other grades of stainless steel on request.
Technical FeaturesClick to open
