SURFACE AERATOR MODEL: SP-SA-2 –FLOATING TYPE

SURFACE AERATOR MODEL: SP-SA-2 –FLOATING TYPE
SURFACE AERATOR MODEL: SP-SA-2 –FLOATING TYPE

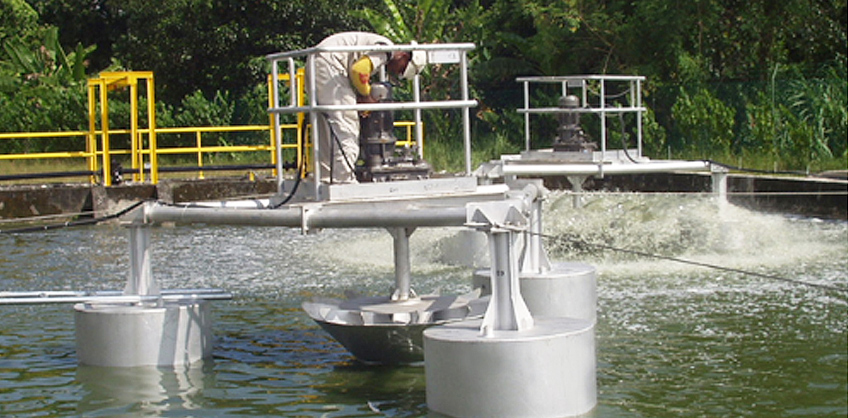

Slow Speed Floating Type aerators supplied to IPOH STP at Malaysia
Application

Generally used in sewage treatment plants/ effluent treatment plants,

To improve the bod/cod levels in the effluent water by transferring oxygen from atmosphere.

TypeSPT-SA-1- slow speed floating type
Size range3 HP to 75 HP with zone for influence of 31m dia max & 5.1m liquid depth
RotorParallel inline helical geared motor
Oxygen transfer rate1.6 TO 1.8 kg/HP/H
Over load protectionProtection on the gear box & overload relay in control panel
Material of construction offered

Mild steel – E250 & E350

Stainless Steel grades -304, 304L, 316 & 316L

Special materials- Super Duplex SS

Special coating – Hot Dip Galvanizing

Optional featuresLocal control panel/ push button starter, platform with handrail, floating pontoon
Drawings & documentation3 D drawings, power calculations, motor & geared motor complete set of data sheets
Erection & maintenance manualProject specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogueClick to open
Reference GA drawingClick to open
Photo galleryClick to open
Read More

SURFACE AERATOR MODEL: SP-SA-1 –FIXED TYPE

SURFACE AERATOR MODEL:  SP-SA-1 –FIXED TYPE
SURFACE AERATOR MODEL: SP-SA-1 –FIXED TYPE

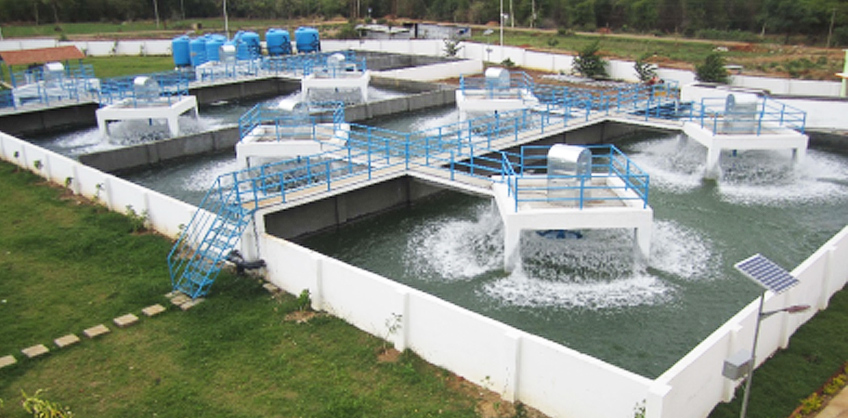

Slow Speed Fixed Type aerators supplied to 4 MLD STP at Bangalore
Application

Generally used in sewage treatment plants/ effluent treatment plants,

To improve the bod/cod levels in the effluent water by transferring oxygen from atmosphere.

TypeSPT-SA-1- slow speed fixed type
Size range3 HP to 75 HP with zone for influence of 31m dia max & 5.1m liquid depth
RotorParallel inline helical geared motor
Oxygen transfer rate1.6 TO 1.8 KG/HP/H
Over load protectionProtection on the gear box & overload relay in control panel
Material of construction offered

Mild Steel – E250 & E350

Stainless Steel grades -304, 304L, 316 & 316L

Special materials- Super Duplex SS

Special coating – Hot Dip Galvanizing

Optional featuresLocal control panel/ push button starter
Drawings & documentation3 D drawings, power calculations, motor & geared motor complete set of data sheets
Erection & maintenance manualProject specific printed booklets with actual pictures of the are given enabling better understanding of erection procedures for site engineers.
Product catalogueClick to open
Reference GA drawingClick to open
Photo galleryClick to open
